Titanium Springs

We have Rich Experience

HOSN Titanium keep producing titanium springs for more than 10 years.Our first titanium spring is used for titanium bicycle rear shocks.At the beginning,we came across many problems it includes easily crack when coiling,less weight reduction,ugly finish,length reducing after compression and many other problems.After countless experiments and improvements,we finally get all of these problems resolved.

Though made from Titanium Alloy Grade 5(Ti6Al4V),different chemical composition (Al,V,Fe,C,O,N,H) of Grade 5 material will has different mechanical features.So titanium spring will has different features when testing if using different chemical composition material.Finally we find the fittest chemical composition of Grade 5 material for titanium spring production.And combining the fittest heat treatment technology,we can design our titanium springs with the minimum weight and they won't get shorted after compression.

Titanium Spring finish will be treated by shot blasting,no only it has very beautiful finish,but also it can increase finish hardness of the spring.Except shot blasting finish,we can also do anodizing colors (Blue,Black,Purple,Green,Gold,Rainbow); PVD coating finish (Oilslick, Gold, Black,Burnt Blue); Featured Red color by special coloring process.

titanium spring colors

titanium spring



Various Types and Customized Springs

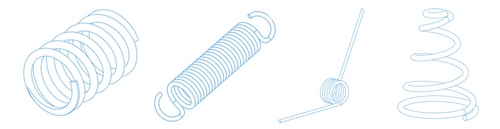

Except compression titanium springs,we also produce torsion and extension springs.To satisfy customer's more demands,we offer custom services.Just tell us how you want the spring works,the spring parameters and more detailed demands,we can give you a satisfying design.

titanium spring types

Excellent Features and Applications

Excellent Features:Low weight,High Strength,Corrosion Resistance,Fatigue resistance,Nonmagnetic,Rustless,etc.

HOSN Titanium springs now are popular used for bicycle,MTB,motorcycle,automobile,electronic products,chemical industrial equipments,marine,office supplies and Articles for daily use,etc.

How to order titanium spring from us

  1. For bicycle rear shock springs,just tell us the spring rates,stroke and spring inner diameter(for example 450lbs x 2.75" 38mm ID) which you want.Remember,our MOQ is 1 piece.
  2. For other springs,we can produce as per your drawing,sample or customized demands.The prices will be decided by the quantity,mold fees,material cost and machining difficulty.



Titanium Kickstand Spring

The titanium pedal springs are made of titanium material Gr5, produced as client’s requirement. If you want to place an order, just tell us your exact requirement details. And they can be anodized to many colors.
Titanium Brake Lever return spring

Titanium Brake Lever Return Spring

The titanium brake lever return springs are for brake assemblies, including left brake lever return spring and right brake lever return spring, machined part from grade 5 Titanium.
titanium spring for roadracing

Titanium Springs for Motorcycle Roadracing

This titanium spring is designed for motorcycle roadracing,it is made from titanium alloy which can ensure low weight, long life time and excellent corrosion resistance. It will never get rusty even without coating. And they can be anodized to many colors. All can be customized to fit your special rear shocks.
TITANIUM COMPRESSION SPRING

Customized titanium compression springs

This is customized titanium compression spring, made from aerospace titanium Grade 5 which has low weight, long lifetime and excellent corrosion resistance features. All can be produced as per customers drawings and given sizes.
Titanium coil spring for downhill racing

Anodized Titanium Coil Spring for Downhill Racing

These are anodized blue,purple and rainbow titanium springs for MTB downhill racing, will fit for all shocks including Fox, Manitou, BOS, DVO shocks and Cane Creek coil shock units,ohlins ttx, marzocchi, dnm burner rpc 2s and RockShox Vivid coil shock units. We produced customized spring rates and stroke,for example 516lbs x 2.11″
Titanium Spring for brompton bmx

Titanium Spring for Brompton BMX

This is Brompton BMX Titanium Springs,it is made from titanium alloy Grade 5 and it can save much weight than steel springs. Except oil slick color,we can also do Black, Gold, Purple,Green,Rainbow, Bronze, Blue, Raw Silver colors,etc.
Rainbow Ti Springs for MTB Rear shocks

MTB Rainbow Ti Springs

Rainbow colored Ti Springs for MTB Rear Shocks, All designed for bicycle rear shocks, will fit for all shocks including Fox, Manitou, BOS, DVO shocks and Cane Creek coil shock units,ohlins ttx, marzocchi, dnm burner rpc 2s and RockShox Vivid coil shock units.
custom oilslick titanium spring

Customized Titanium Spring with Oil Slick Color

This is customized titanium spring with oil slick color. All of the titanium spring inner diameter, spring rates and stroke can be customized as customer’s demands. All made from titanium alloy which can reduce weight of the springs.
motorcycle titanium shock springs

Motorcycle Titanium Springs

This is customized titanium springs for motorcycles.It has spring rates 275lbs/inch,63.5mm inner diameter and 170mm free length.Made from titanium alloy Grade 5 which can ensure low weight and long lifetime.
customized small titanium compression spring

Customized Small Titanium Compression Springs

This is customized small titanium compression springs,it is made from titanium alloy Grade 5 and it has 0.78mm wire diameter, 4.9mm outter diameter and 11.5mm free length.It is designed for Vacuum pumps.
colored titanium springs for mountain bikes

Colored Titanium Springs for Bicycle Rear Shocks

These are titanium springs for bicycle rear shocks,they are colored by anodizing and PVD coating. The colors can be Gold,Blue,Light Blue,Purple,Light Purple,Green,Bronze,Rainbow,black and Oilslick colors.
Titanium Conical Cone Compression Spring

Titanium Conical Cone Compression Spring

This is Titanium Conical Cone Compression Spring,also called Tower spring.It is made from titanium alloy which can reduce weight, ensure long lifetime and excellent corrosion resistance features.
Titanium Spring with shot peening finish

MTB Titanium Spring with Shot Peening Finish

This titanium spring are designed for MTB rear shocks,they have shot peening finish.All made from titanium alloy Grade 5 and can ensure high strength,low weight and excellent corrosion resistance.
titanium springs for motorcycle

Grade 5 Ti Springs for Motorcycle Shocks

These Titanium Springs are use for motorcycles,all titanium springs has spring rates 75N/mm to 90N/mm, inner diameter is 51mm.All are made from titanium alloy Grade 5 which have high strength and excellent performances.
